Transparent LED Film

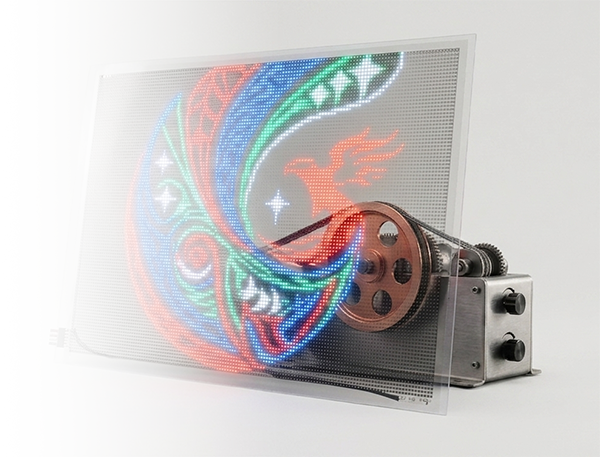

Flexible transparent LED display film transforms standard glass surfaces into high-definition visual platforms without obstructing natural light or views. This lightweight, self-adhesive film applies directly to existing glass, maintaining architectural integrity while delivering vibrant, full-colour imagery. Its high transparency ensures that the display remains nearly invisible when inactive, allowing storefronts and office partitions to function normally. Designed for versatility, the film can be trimmed to fit specific dimensions and adheres to curved surfaces, offering a practical way to integrate digital signage into modern environments.
Transparent LED Film
Flexible transparent LED display film integrates high-definition digital content directly onto glass surfaces while maintaining architectural clarity through its 90% to 95% permeability. This ultra-lightweight film features a slim 2.0mm profile and weighs only 1.3kg per cabinet, allowing for installation on existing windows without the need for additional steel support structures. The self-adhesive design uses a specialised glue filling process and an invisible grid circuit to ensure the display remains unobtrusive when not in use. Built for longevity and performance, the film provides high-intensity brightness of up to 4000 nits, true 16-bit grey scale processing, and a lifespan reaching 100,000 hours. These durable units are also UV resistant for over eight years and meet V1 flame retardant standards, making them a reliable choice for diverse environments such as car dealerships, showrooms, and transport hubs.
Features
- High Transmittance – Ultra -high transparency – the transmittance is more than 90%.Mini LED lamp integrated with light drive achieves ultra high transparency. Uses invisible grid circuit to improve its
permeability - Easy Installation – Self-developed glue filling process. No steel structure required, just simply stick the LED film to existing sufaces and connect the power signal.
- Flame retardant and UV resistant – Grade V1 lame retardant UV resistance without yellowing > 8 years
- Light and Thin – Thickness: 2.0mm. Weight: 1.3 – 2 KG
TECHNICAL SPECIFICATION
| Pixel Pitch | P5 | P6.25 | P8 | P10 | P15 | P20 |
|---|---|---|---|---|---|---|
| LED Type | SMD 1313 | SMD 1313 | SMD 1313 | SMD 1313 | SMD 2121 | SMD 2121 |
| Brightness (nits) | 2000 | 2000 | 2000 | 2000 | 2000/4000 | 2000/4000 |
| View Distance | >5m | >6m | >10m | >8m | >15m | >20m |
| Pixel /m² | 40,000 | 25,600 | 10,000 | 15,625 | 4,356 | 2,500 |
| Refresh Rate | 3,840HZ | |||||
| Viewing Angle | 160°(H)/160°(V) | |||||
| Module Size (mm) | 320 * 1020 | 400 * 1030 | 400 * 1030 | 400 * 1030 | 390 * 990 | 400 * 1030 |
| Permeability | 90% | 90% | 94% | 92% | 94% | 95% |
| Average Power | 200 W/m² | |||||
| Max Power | 600 W/m² | |||||
| Voltage | AC 100-240V | |||||
| Weight (per cabinet) | 2kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Thickness | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
| Colour temperature | 6,500K ±500K | |||||
| Processing | 16 bit | |||||
| Operating Temp/Humidity | -20~45°C / 10%~60% | |||||
| Expected LED Lifetime (Max) | 100,000 hours | |||||
ALTERNATIVE TRANSPARENT TECHNOLOGY
We offer a wide selection of alternative transparent screen technologies including Transparent LED Displays, Transparent LCD Screens – which are ideal for applications that require a small transparent display with sizes as small as 9.7”. We also offer other LED solutions including modular indoor and outdoor LED screens with pixel pitches starting from 1.5mm up to 20mm.
The display uses a self-adhesive layer that allows it to be applied directly to existing glass without the need for complex steel frames or heavy mounting hardware.

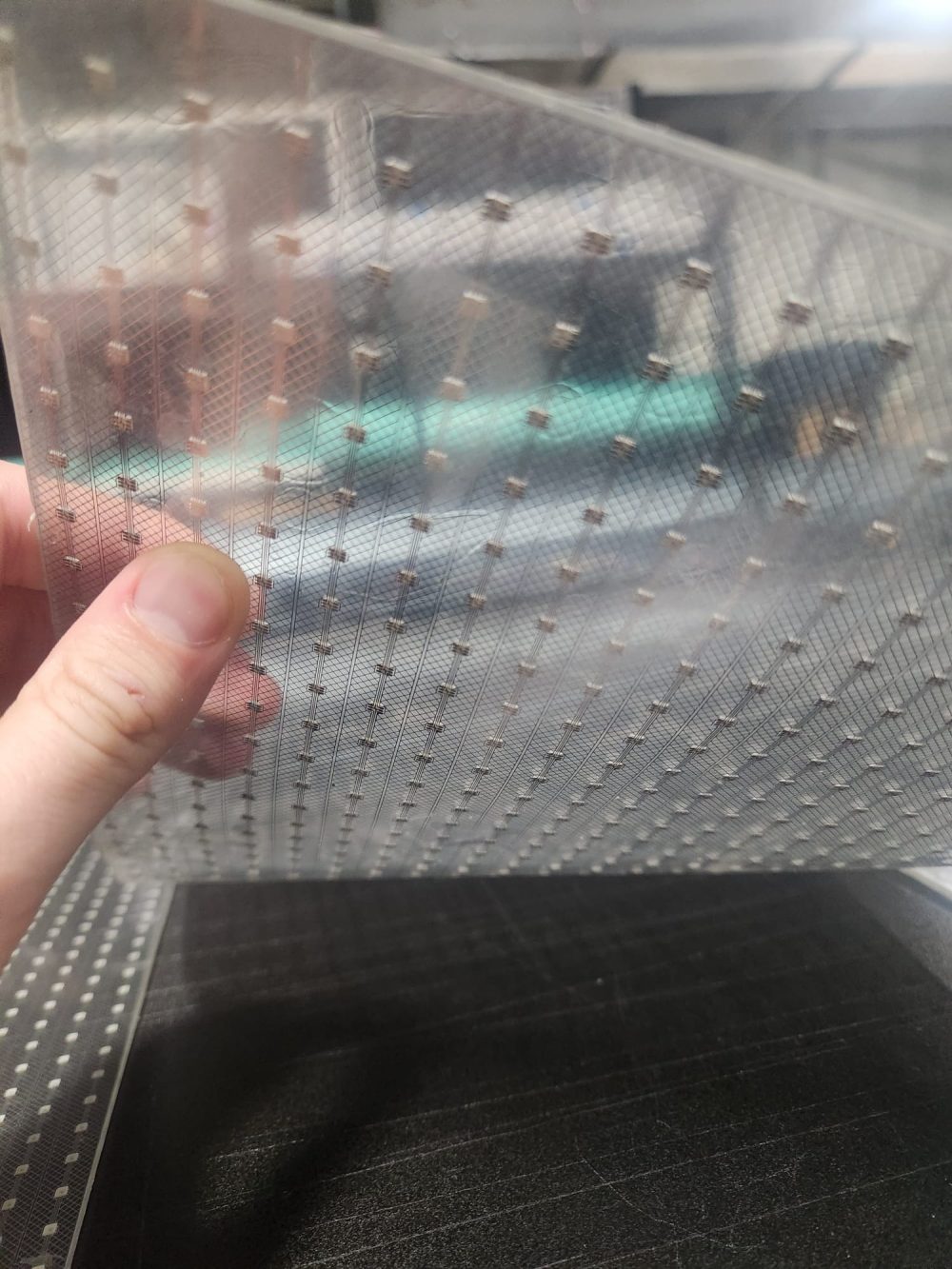

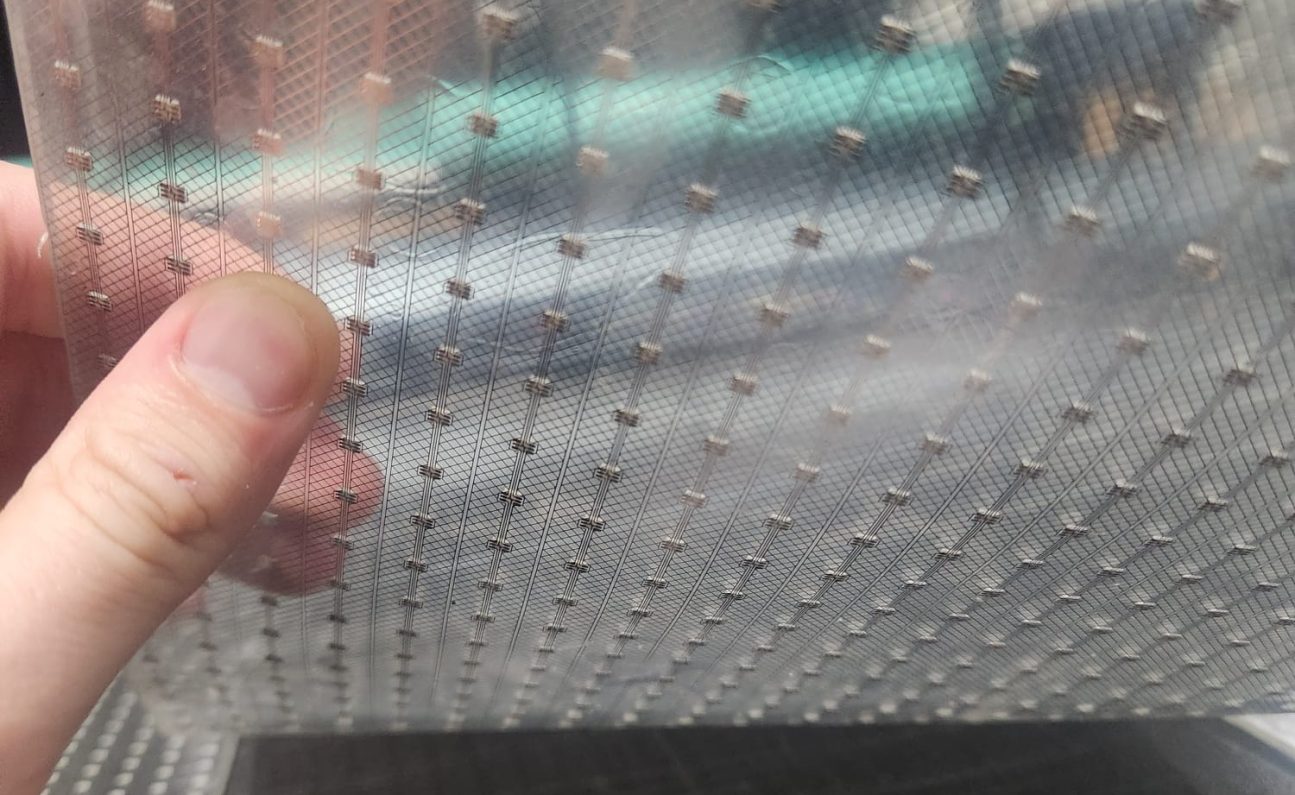

The film maintains high transparency levels, ranging from 90% to 95% depending on the specific model, ensuring that natural light and visibility are preserved. This is achieved through a combination of mini LED lamps and an invisible grid circuit design.
The display is designed for long-term use with an expected LED lifetime of up to 100,000 hours.
Their unique blend of transparency and dynamic visuals makes them ideal for:
-

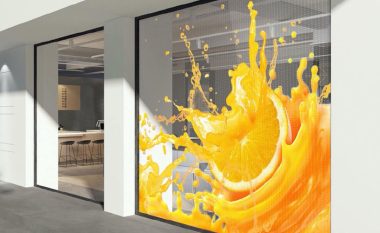

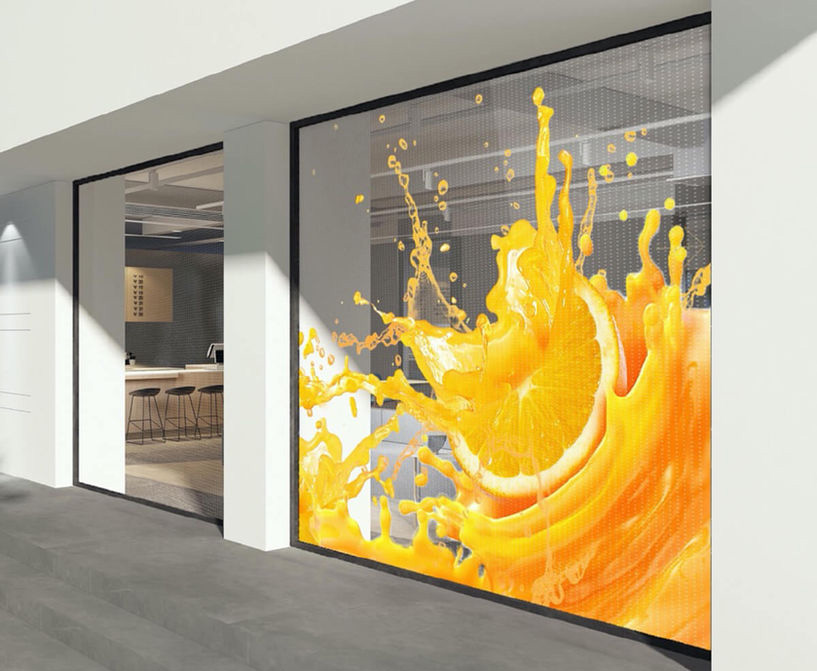

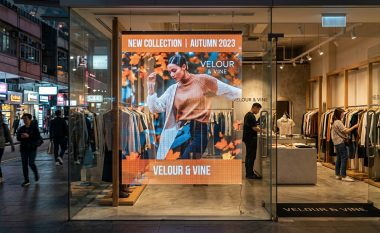

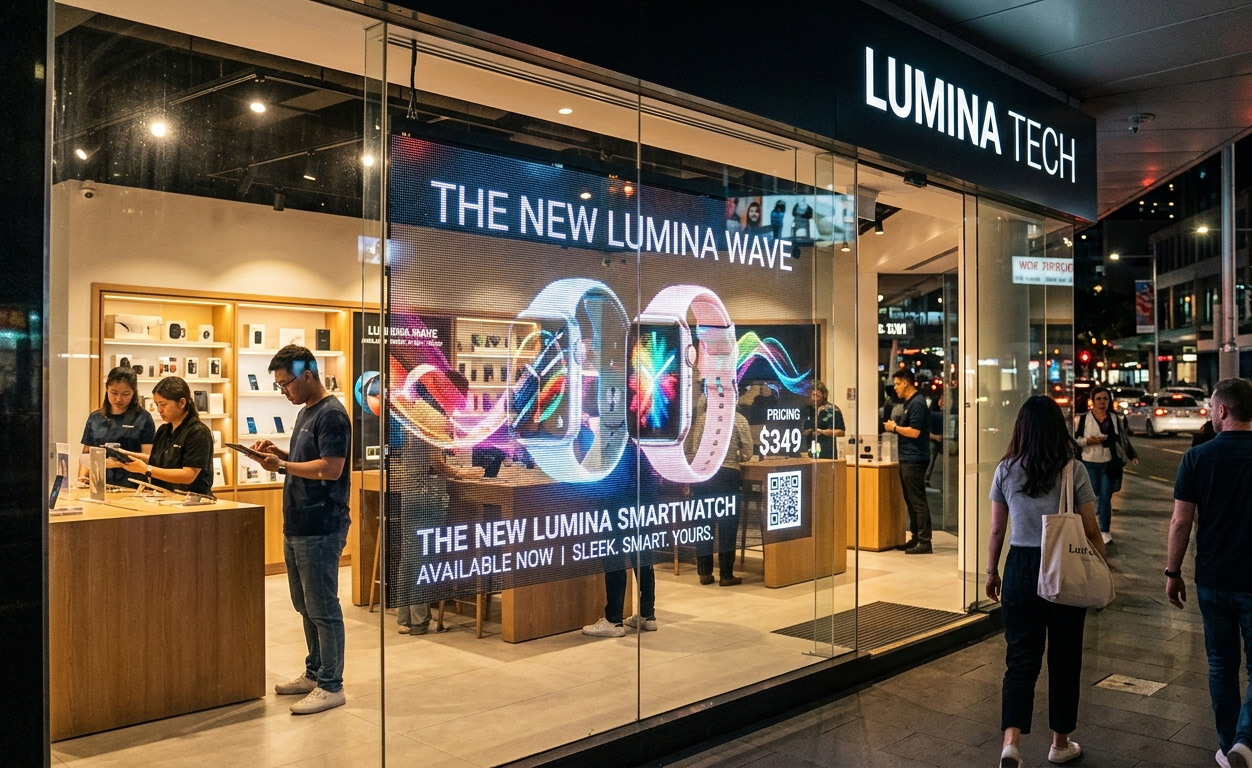

Retail and Storefronts: Displaying product advertisements and promotions on shop windows without blocking the view of the products inside.
-
Architectural/Building Facades: Turning glass curtain walls into large-scale, dynamic digital signage.
-
Exhibitions and Museums: Creating immersive, interactive displays that blend digital information with physical exhibits.
-
Stage and Events: Providing unique, transparent backdrops for concerts, fashion shows, and live performances.
Pixel pitch is the distance, measured in millimetres (mm), from the centre of one LED cluster (pixel) to the centre of the next.
-
A smaller pixel pitch means the LEDs are closer together, resulting in higher resolution and a better display quality from a shorter viewing distance, but typically a slightly lower transparency.
-
A larger pixel pitch means the LEDs are further apart, resulting in higher transparency but requiring a longer viewing distance for a seamless image.
The material is UV resistant and engineered to prevent yellowing for over eight years. Additionally, it features a V1 flame retardant rating for enhanced safety in commercial environments.
Each module has a slim thickness of only 2.0mm. The weight is approximately 1.3kg per cabinet for most models, making it exceptionally light and easy to handle during installation.
The film operates on a standard voltage of AC 100-240V. It is energy efficient, with an average power consumption of 200W per square metre.
The system supports true 16-bit grey scale processing and a refresh rate of 3,840 Hz, ensuring smooth motion and accurate colour reproduction for professional broadcasts and showrooms.
